Sapphire Phone Camera Lens

Product Overview

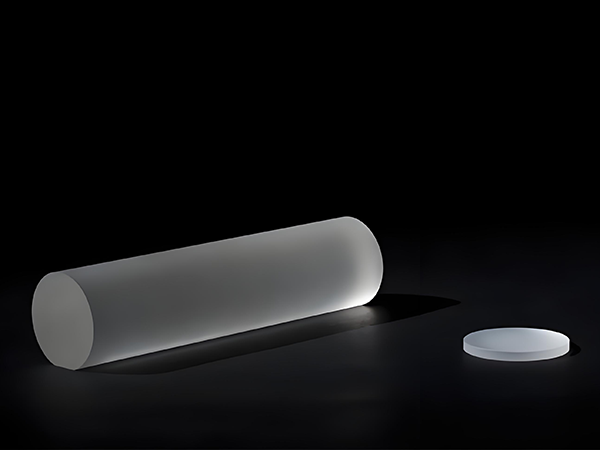

Sapphire camera lenses are crafted from high-purity synthetic sapphire crystal (Al₂O₃), specifically designed for precision optical systems in high-end camera modules, smartphones, security surveillance, industrial equipment, and automotive imaging. Renowned for their exceptional physical properties and optical performance, sapphire lenses are the ideal choice for high-definition imaging and long-term durability in harsh environments, meeting the dual demands of durability and image quality in consumer electronics and industrial applications.

Key Advantages

  1. Superior Scratch & Wear Resistance

    • Mohs hardness of 9 (second only to diamond), effectively resisting scratches from sand, metal tools, and sharp objects.

    • No additional protective coating required; maintains pristine clarity over extended use.

  2. High Light Transmittance & Low Reflectance

    • Visible light transmittance ≥90%, ensuring accurate color reproduction and minimizing light loss.

    • Optional anti-reflective (AR) coating to reduce glare and ghosting, enhancing low-light imaging.

      • 1

  3. Extreme Environment Adaptability

    • Operating temperature range: -50°C to 800°C, resistant to thermal shocks and rapid temperature changes.

    • Chemically inert to acids, alkalis, oils, and solvents, ideal for industrial or outdoor applications.

  4. Ultra-Thin Precision Design

    • Customizable thickness (0.3mm–3.0mm) to fit miniaturized camera modules.

    • Ultra-high flatness (λ/4@632.8nm) and low birefringence for edge-to-edge image sharpness.

Technical Specifications

Parameter Details
Material Synthetic Sapphire Crystal (α-Al₂O₃)
Diameter Range Φ2mm–Φ50mm (custom sizes available)
Thickness Tolerance ±0.02mm (standard)
Surface Quality 10/5 (per MIL-PRF-13830B)
Transmittance ≥90% (380nm–2500nm broad spectrum)
Refractive Index 1.76@589nm
Coating Options AR Coating, Hydrophobic/Oleophobic, IR Cut Filter
Impact Resistance Passes 1.5m free-fall test (steel ball impact)

Applications

  • Smartphones/Wearables: Front/rear camera lenses for flagship devices, balancing durability and imaging excellence.

  • Security Surveillance: Outdoor cameras, body-worn cams, resistant to vandalism and extreme weather.

  • Automotive Systems: Backup cameras, ADAS sensors, stable performance in high/low temperatures and vibrations.

  • Industrial Inspection: Machine vision, laser systems, ensuring reliability in rigorous operations.

Customization Services

Tailored solutions include:

  • Custom shapes (round, square, pill-shaped, etc.)

  • Multi-layer coatings (anti-reflective, hydrophobic, anti-static)

  • Beveling/edge grinding for module compatibility

  • Fast bulk order delivery

Quality Commitment

  • Dust-free manufacturing with 100% optical inspection (interferometers, spectrophotometers, etc.).

  • Compliant with RoHS and REACH standards

Choose Sapphire Lenses—Empower Your Devices with Diamond-like Durability and Eagle-eyed Precision !
Contact our team for technical solutions.

+
